Dimensions

Work Area

200mm(X) * 200mm(Y) * 100mm(Z) / 7.9in * 7.9in * 3.9in

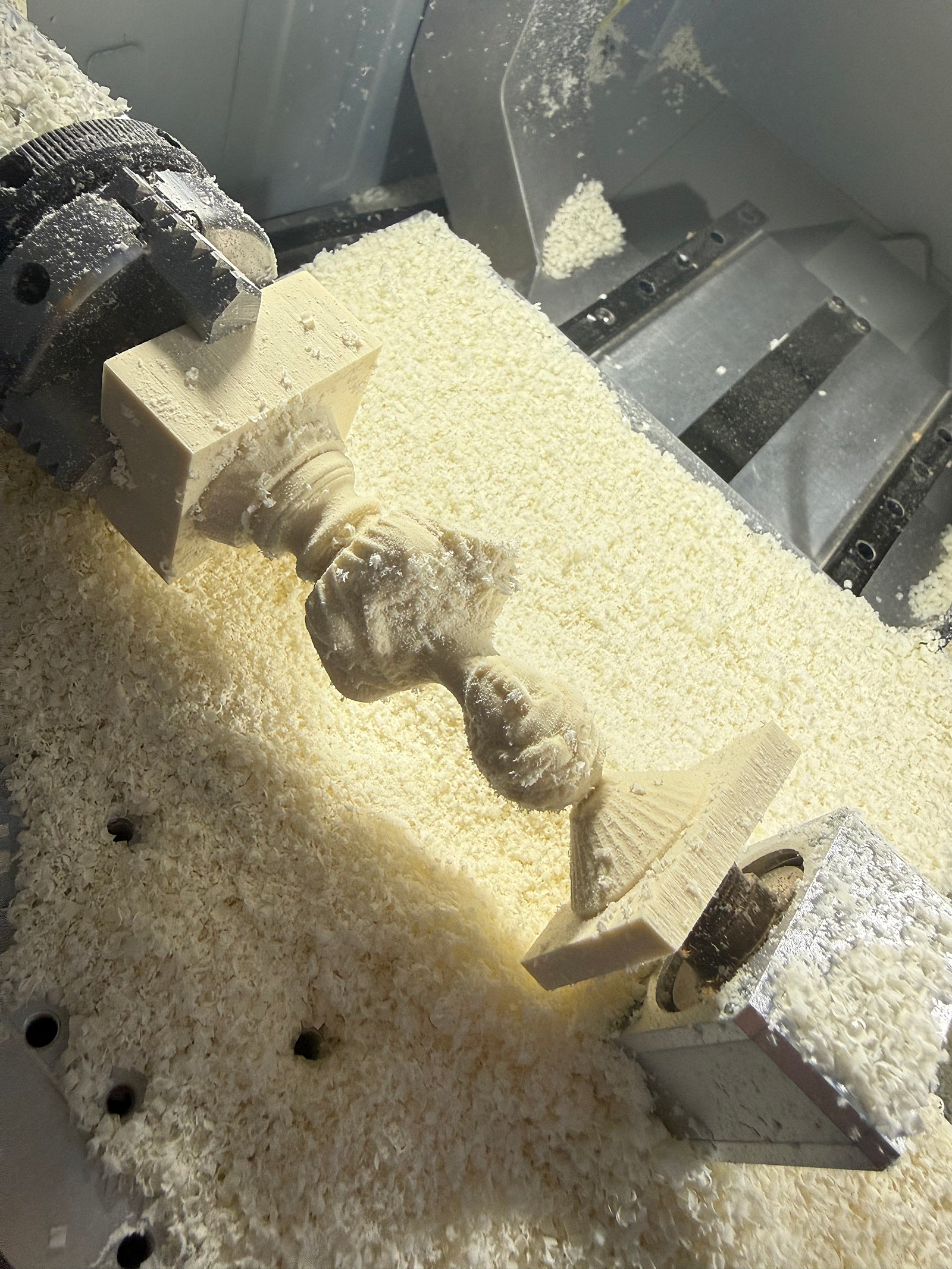

4th Axis Work Area (optional)

80mm(Diameter) * 150mm(Length) / 3.1in * 5.9in

Gantry Clearance

115mm / 4.5in

Max Height (Lid open)

840mm / 33in

Footprint

350mm(Width) * 470mm(Depth) * 450mm(Height) / 13.8in * 18.5in * 17.7in

Weight

17kg

Spindle

Power

150 Watt

Speed

0 - 13000 RPM with closed-loop control

Collet

Custom collet with 1/8in integrated (optional: 1/4in, 6mm, 4mm, 3mm)

Tool Change Method

Quick tool changer

Cooling

Built-in air cooling

Motion System

Motor

Makera Z1:NEMA 17 stepper motor / Z1 Pro:NEMA 17 Closed-Loop Stepper Motor

Drive Method

Linear rails + Acme lead screw/ Z1 Pro:Linear rails + Ball screws

4th Axis Drive Method (Optional)

Belt driven

Precision

Spindle Runout

0.01mm / 0.0004in

Resolution

0.02mm / 0.0008in

Laser Module (optional)

Power

5 Watt

Laser Type

445nm semiconductor diode laser

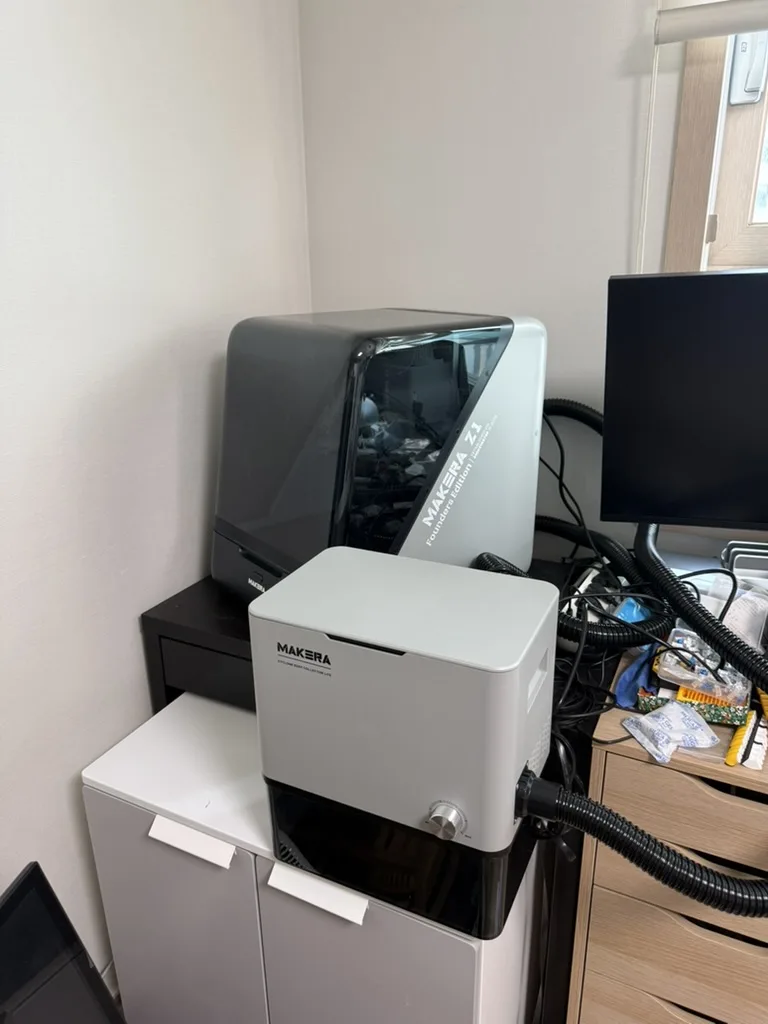

Dust Collection

AeroDust™ Collection System

Integrated spindle & tool cooling with active chip evacuation and dust collection.

Supported Materials

Metal

Aluminum, brass, copper and other Non-Ferrous metals.

Wood

Hardwoods, softwoods, MDF, plywoods, etc.

Plastic

Foam, PVC, ABS, Acrylic, PC, HDPE, etc.

Composite material

Carbon fiber, FR4, etc.

Laser engrave material

Wood, plastic, fabric, leather, cardboard, etc.

Software

Makera Studio — the new Makera CAM.

Makera's first one-click consumer CAM software — available free to all Makera users.

Compatible CAD/CAM software:

Fusion360, SolidWorks, AutoCad, VCarve Pro, Aspire, Illustrator, etc.

Makera App — the new Makera Controller

Makera's mobile app lets you control and monitor your machine remotely.

Makerables

A universal CNC project-sharing platform from Makera.

AI Craft

Makera's AI tool lets you Customize CNC Models with Zero Modeling Skills.
